Description
Place of Origin: China
Certification: CE, Rosh, HDMI
Application: Indoor
Installation: Floor Standing
Size: 15.6” /18.6” / 21.5” / 24” / 27” / 32”available
Printer: Yes, Built-in
CPU: I3/i5/7 (optional)
Scanner: Yes, Built-in
Packaging Details:
Packaging: Packed with strong EPE, carton box, and wooden box (every two sets packed into one carton). Various shipping methods are optional, such as DHL, UPS, FEDEX, TNT, by air, or by ship
Supply Ability:
500pcs/Month
Highlight:
- NFC Self-Service Kiosk Machine
- Self-Service Kiosk Machine
- NFC Kiosk Machine
Product Description

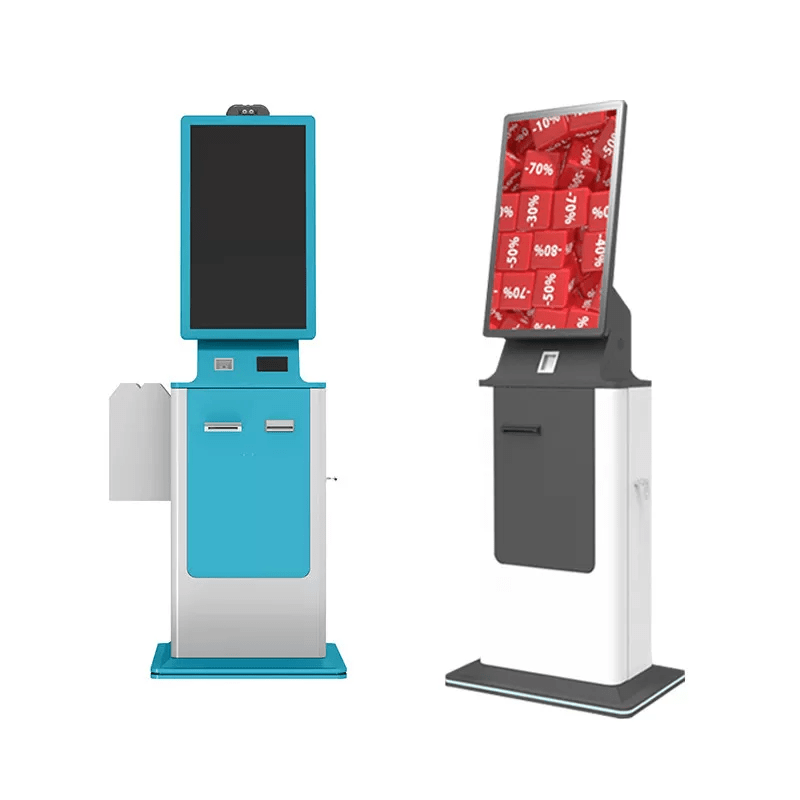

OEM/ODM Self Service Kiosk Machine Customize Functions Machine Touch Bill Payment Printer Scanner NFC
Product Information:
- Touch screen
- POS machine
- Card reader
- Receipt Printer
- ID card reader
- QR code scanner
- Face recognition
- monitoring
- Face registration
- Pay card reader
- A4 printer
- Password
- Keyboard
- LED light box
|
Components
|
Specification
|
|
Computer
|
Industrial Mainboard: H81;
CPU: 3.2GHz, Intel Core i3 Memory: support Max 8GB 1600/1333MHz DDR3L/1.35V SDRAM; SSD 250GB; RAM 4G; Industrial computer cabinet with power supply; Required ports (Serial, USB, VGA, DVI, etc.) to connect all the devices; Two 10/100 Mbps or higher Ethernet network cards with RJ45 ports; (More sizes and types of PC available upon request) |
|
Monitor
|
TFT LCD : 15, 17 or 19 optional
Brightness: 300~1200nits Contrast: 450:1~1000:1 Resolution:15 1024*768 17 1280*1024 19 1280*1024 More sizes between 20″~46″ upon request |
|
Touchscreen
|
SAW Touch: 15 17 19″
Resolution: 4096*4096 (More types of touchscreen available: capacitive, resistive, or IR optional) |
|
Input Device
|
3DES Metal EPP: 16 keys, waterproof, dustproof, vandal-proof
|
|
Cash Acceptance Module
|
• Four-way acceptable;
• Numerous interfaces are available; • Validation rate of 98% or greater; • Easy to install and maintain; • Approximately three seconds to stack; • Rarely jams as the bank note is always controlled; • Cashbox capacity: 2000 notes, or customized, with a safety case for protecting the cassette; |
|
Speaker
|
Multimedia: Left-right bi-channel amplified output
|
|
Enclosure
|
ColdRoll Steel: Steel powder-coated front
Powercoated backcover |
|
OS&Drivers
|
Windows XP+SP2 (WINCE, Linux, Unix, WIN2000) and all related drivers available
|
|
Packing
|
Bubble Foam, carton, wooden case
|
|
Other Optionals: UPS, Video Camera, Alarm System, Barcode Scanner, Track Ball, Photo Printer, Cash Acceptor, Card Dispenser, Check Acceptor, Infrared, Bluetooth, PSAM Card, etc.
|
|
Features:
- Industrial Motherboard
- Equipped with an industrial-grade all-in-one motherboard
- Stable and smooth operation, strong anti-interference ability
- INDUS TRIAL HD SCREEN
- Using LED backlight technology combined with an industrial A screen,
- The picture has brighter colors and a longer service life.
- Digital audio speaker, Clear transmission information.
- Fast Printing, More Convenient Checkout
- Built-in 80mm thermal printer,
- Automatic cutting machine.
- Printer paper’s width is supported 57 5+0.5, 69.5+0.5,76+0.5, 79.5+0.5 ,82. 5+0.5mm.
Advantages:
- Suction card reader, pay card payment, National secret chip processing, and information security are guaranteed.
- The atmosphere lamp is beautiful and charming
- Convenient to operate the machine at night
Application:
Restaurant chains, supermarkets, kitchens, displays, convenience stores, clothing stores, bakeries, hotels, offices, etc.
